DynaGATE 10-14

Skip to content

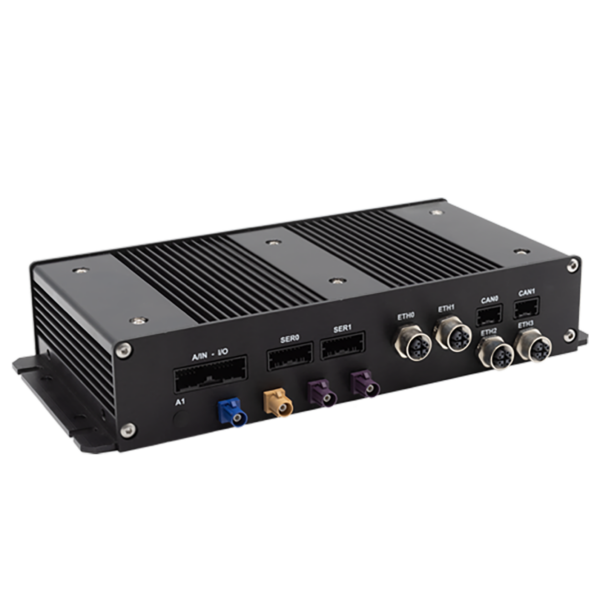

The DynaGATE 10-14 is a PSA Level 1 certified Multi-service IoT Gateway that has been designed to deliver global, carrier certified LTE connectivity to Automotive applications with E-Mark certification.
The DynaGATE 10-14 features a wide range of connectivity capabilities: it integrates a global, carrier certified LTE Cat 4 cellular modem with dual SIM support, Wi-Fi, Bluetooth 5/BLE, and two Gigabit Ethernet ports; an integrated GNSS provides precise geolocation capabilities.
The DynaGATE 10-14 is equipped with TPM 2.0, which provides cutting-edge security features, such as Secure Boot and ARM Trust Zone that protect the system integrity and authenticity against unauthorized manipulations. It also features hardware antitampering and is designed to meet PSA Certified Level 1 and IEC 62443-4-1/-4-2 cybersecurity.
The DynaGATE 10-14 comes with Everyware Software Framework (ESF), a commercial, enterprise- ready edition of Eclipse Kura, the open-source Java/OSGi middleware for IoT Edge Gateways. ESF supports ready-to-use field protocols (including Modbus, OPCUA, S7), MQTT connectivity, web-based visual data flow programming and deep configuration. ESF is also integrated with Everyware Cloud (EC),

PSA Certified Level 1 Details

Certificate Number: 0632793519713 - 10102
Date of Issue: 07/11/2023
Test Lab: SGS Brightsight
Certification Holder: Eurotech
Certified Product: DynaGATE 10-14
Hardware Version: DYGATE 10-14-XX Rev.B01
Software Version:

Everyware Linux 33.0.0
Everyware Software Framework 7.3.0
ARM Trusted Firmware A / OP-TEE M865S v1.1

Certification Type: PSA Certified Level 1 v2.2 REL 01
Developer Type: PSA Certified – Device
