nRF52840

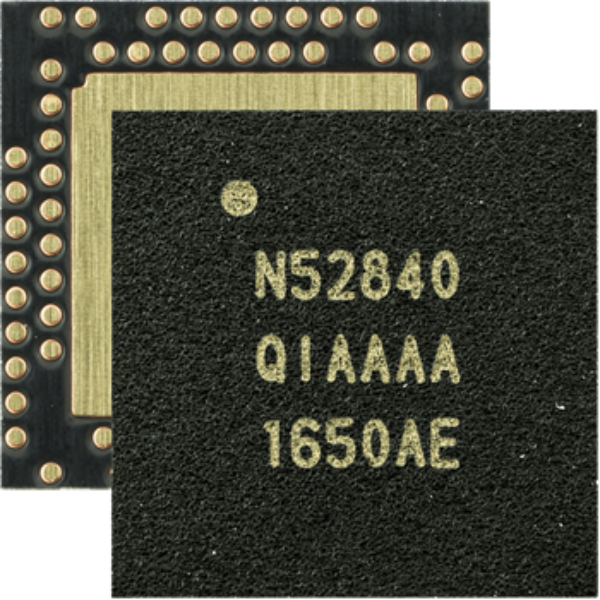

The nRF52840 is a multiprotocol Bluetooth 5.3 SoC supporting Bluetooth Low Energy, Bluetooth mesh, NFC, Thread, Zigbee, and 2.4 GHz proprietary. It is a highly flexible single-chip solution for today’s increasingly demanding ultra-low power wireless applications. The nRF52840 is built around the 32-bit ARM® Cortex™-M4 CPU with floating point. It has NFC-A Tag support for use in simplified pairing and payment solutions. The ARM TrustZone® CryptoCell 310 cryptographic unit is included on-chip and brings an extensive range of cryptographic options that execute highly efficiently independent of the CPU.

Learn more

PSA Certified Level 1 Details

Certificate Number: 0632793519348 - 10210
Date of Issue: 07/11/2022
Test Lab: Riscure
Certification Holder: Nordic Semiconductor
Certified Product: nRF52840 Series
Hardware Version: nRF52840-QIAA-F, nRF52840-QFAA-F, and nRF52840-CKAA-F
Software Version:

nRF Connect SDK v2.1.0

Certification Type: PSA Certified Level 1 v v2.2 REL 01
Developer Type: PSA Certified – Chip

PSA Certified Level 1 Details

Certificate Number: 0604565273079 - 10016
Date of Issue: 10/07/2020
Test Lab: Riscure
Certification Holder: Nordic Semiconductor
Certified Product: nRF52840 Series
Hardware Version: QIAA-D00 and CKAA-D00
Software Version:

nRF5 SDK version 16

Certification Type: PSA Certified Level 1 v1.2
Developer Type: PSA Certified – Chip
